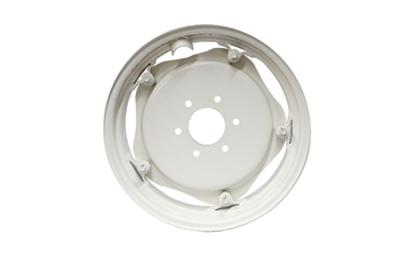

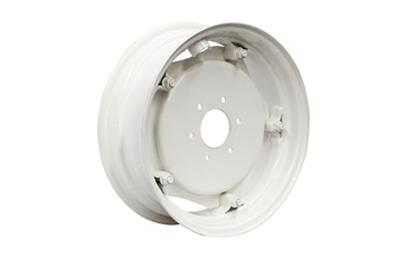

W7X20
分类：农用车轮 发布时间：2021-05-24
访问量：469
| Wheel Type | Bores No. | Nut Dia | P.C.D | Center Bore Dia | Offset |
|
| mm | mm | mm | mm |
| W7X20D | 6 | 20 | 190 | 146 | 46.5 |
| W7X20C | 6 | 17 | 180 | 141 | 22 |
| W7X20B | 6 | 17 | 180 | 141 | 48 |
| W8X24D | 6 | 18.8 | 165 | 120 | 46 |
| W8X24D | 6 | 15 | 165 | 130 | 0 |
| W8X24B | 8 | 17 | 203.2 | 152.6 | 93 |
| W8X24 | 6 | 17 | 170 | 135 | 4 |
| W10X24 | 8 | 18.8 | 203.2 | 152.6 | 29 |
| W10X24B | 8 | 16.5 | 330 | 290 | 26 |
| W10X24C | 8 | 18 | 275 | 222 | 25 |
| W10X28 | 8 | 18.8 | 203.2 | 152.6 | 29 |
| W10X28B | 8 | 16.5 | 330 | 290.5 | 26 |
| W10X28C | 8 | 19.8 | 230.2 | 150.1 | 38 |
| W10X28D | 8 | 20 | 152 | 110 | 15.5 |
| W10X32 | 8 | 20 | 203.2 | 152.6 | 36.5 |
| W12X30 | 8 | 19 | 203.2 | 150.1 | 30 |
| W12X30B | 8 | 19 | 203.2 | 152.6 | 59.5 |
| W15Lx34 | 8 | 21.5 | 203.2 | 152.3 | 72 |
| W15Lx34B | 8 | 21 | 203.2 | 152.6 | 25 |
| W15Lx34C | 8 | 19 | 230 | 180 | 21 |
| W15Lx34D | 8 | 21 | 203.2 | 152.4 | 12 |
| W15Lx38 | 8 | 22 | 203.2 | 152.3 | 72 |
| W15Lx38B | 8 | 21.5 | 203.2 | 140 | 30 |
| W15Lx38C | 8 | 22 | 203.2 | 150 | 20 |
| W15Lx38D | 8 | 19 | 203.2 | 150.1 | 120 |
| W18Lx38 | 10 | 23 | 335 | 281 | 146 |
